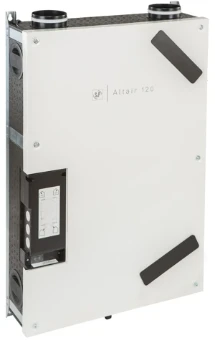

ALTAIR 120 V RE

Add to selection
General information
Ordercode YESSS
3088-1519
Product code
5153811200
Product group
Heat recovery unit (residential)
Brand
Soler & Palau
Type
ALTAIR 120 V RE
ALTAIR 120 V RE ALTAIR 120 V RE
STOCK
IN STOCK
0 piece
Product description

Zeer compacte WTW-unit met hoog rendement warmtewisselaar voor constante verse luchttoevoer in de leefruimten.
De standaard ingebouwde intelligente vochtsensor monitort constant de relatieve vochtigheid (RV), en regelt continu en automatisch de capaciteit van de unit.
Wanneer de relatieve vochtigheid toe- of afneemt, past de motorsnelheid zich aan in directe relatie tot het RV-niveau.
Hierdoor regelt het systeem vraag-gestuurd, en is daardoor maximaal energiezuinig.
Het ultra-compacte ontwerp kan zowel horizontaal als verticaal worden geïnstalleerd.
ALTAIR is uitgerust met hoog rendement G4 filters voor toevoer en retour.
De afstandsbediening is inclusief en biedt de gebruiker de keuze tussen automatische of handmatige bediening, en geeft indicatie wanneer de filters vervangen moeten worden.

Product specifications
Housing material
Other
Suitable for central heating boiler connection
No
Suitable for wall mounting
Yes
Suitable for floor mounting
No
With thermal overload protection
Yes
Suitable for wireless remote control
No
With digital display
No
Nominal duct diameter
100 - 100 mm
With bypass
No
Height
850 mm
Width
550 mm
Depth
170 mm
Suitable for ceiling mounting
No
Max. air volume at 50 Pa
132.38 m³/h
Max. air volume at 100 Pa
132.46 m³/h
Max. air volume at 150 Pa
132.21 m³/h
Max. air volume at 200 Pa
66.05 m³/h
Type of motor
Electronically commutated (EC)
Voltage
230 V
Frequency
50 Hz
Electrical connection
Cable
Supporting protocol for MODBUS
Yes
With wired control unit
Yes
Suitable for wired control unit
Yes
With zone controller
No
Suitable for zone controller
No
With internal humidity (RH) sensor
Yes
Suitable for (extra) humidity (RH) sensor
No
With internal carbon dioxide (CO2) sensor
No
Suitable for (extra) carbon dioxide (CO2) sensor
No
With heating element
No
With constant pressure control
No
With constant volume flow control
Yes
Type of frost protection
Other
Supply filter according to ISO 16890-1:2016
ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016
65 %
Exhaust filter according to ISO 16890-1:2016
ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016
65 %
Weight
20 kg
