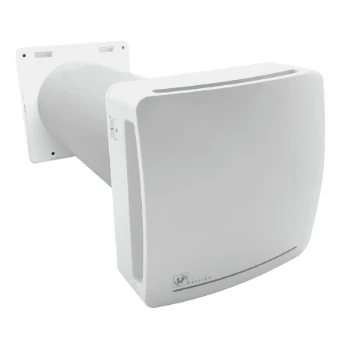

Heat recovery unit (residential) Soler & Palau
Add to selection
General information
Ordercode YESSS
3124-2067
Product code
5144003600
EAN code
08445325138533
Product group
Heat recovery unit (residential)
Brand
Soler & Palau
Product specifications
Housing material
Plastic
Suitable for central heating boiler connection
No
Suitable for wall mounting
Yes
Suitable for floor mounting
No
Residential connection, underside
No
Residential connection, left side
No
Residential connection, right side
No
Residential connection, top
No
Roof connection, side
No
Roof connection, top
No
With thermal overload protection
Yes
Suitable for wireless remote control
Yes
With digital display
No
With bypass
Yes
Height
215 mm
Width
215 mm
Depth
660 mm
Suitable for ceiling mounting
No
Left/right orientation reversible
No
Type of motor
DC
Voltage
230 V
Frequency
50 Hz
Number of phases
1
Electrical connection
Terminals
Supporting protocol for MODBUS
No
With wired control unit
No
Suitable for wired control unit
No
With zone controller
No
Suitable for zone controller
No
With internal humidity (RH) sensor
No
Suitable for (extra) humidity (RH) sensor
No
With internal carbon dioxide (CO2) sensor
No
Suitable for (extra) carbon dioxide (CO2) sensor
No
With heating element
No
With constant pressure control
No
With constant volume flow control
No
Type of frost protection
Other
Supply filter according to ISO 16890-1:2016
ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016
45 %
Exhaust filter according to ISO 16890-1:2016
ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016
45 %
Weight
4.23 kg
Heat recovery by
Other
Housing material quality
Other
Material heat exchanger
Other
Degree of protection (IP)
IPX4
Energy efficiency class according to 1253/2014/EU
A
