Digitale stroomtang 0-1000A met multimeter functies
Add to selection
General information
Ordercode YESSS
3109-0010
Product code
WMGBCMP1010
EAN code
05907624014817
Product group
Clamp measuring instrument
Brand
Sonel
Serie
Stroomtang
Type
WMGBCMP1010
Digitale stroomtang 0-1000A met multimeter functies
Digitale stroomtang 0-1000A met multimeter functies
STOCK
IN STOCK
0
piece
Product description

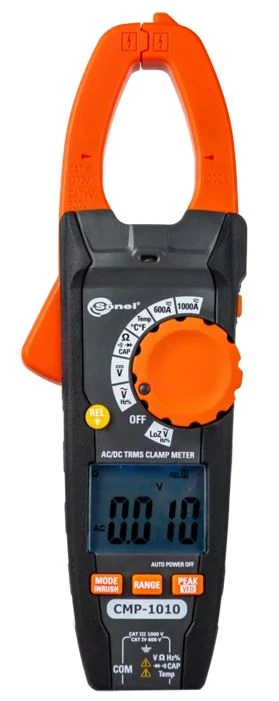

De Sonel CMP-1010 meet wissel- en gelijkstroom, wissel- en gelijkspanning en meer. De meter levert nauwkeurige metingen stroomafwaarts van frequentieomvormers. Het apparaat is veelzijdig door vele meetmogelijkheden, waaronder spanningsmeting met lage impedantie (Low Z).
Kenmerken:
- AC/DC stroommeting tot 1000A
- AC/DC spanningsmeting tot 1000V
- Inrush stroom meetfunctie
- Temperatuur meting
- Weerstand en continuïteitstest
- Capaciteitsmeting
- Frequentie en REL (Relative measurement meting)
- Diode test
- Data Hold functie en Peak MIN/MAX functie
- Low Z
- TRMS meting
- IP30, veiligheidscategorie CAT IV 600V
In de doos:
- 1 Sonel CMP-1010 AC/DC digitale stroomtang
- 2 Meetsnoeren
- 1 K type thermokoppel
- 1 Batterij LR03 AAA 1,5V
- 1 Draagtas
- 1 Engelstalige handleiding
Product specifications
Indication
Digital
Analogue bar graph display
No
Measuring range selection
Manual/automatic
Current measuring range, DC
0 - 1000 A
Current measuring range, AC
0 - 1000 A
Type of current
AC/DC
True RMS measurement
Yes
Voltage measurement, AC
Yes
Voltage measurement, DC
Yes
Resistance measuring range
Yes
Power measuring
No
Leakage current measuring
No
Harmonics measurement
No
Measurement in cables with for- and back conductor
No
Jaw opening
35 mm
Version as adaptor to connect to multi meter
No
Interface
No
Measuring circuit category
CAT IV
Continuity test
Yes
Multiple display
No
With display backlight
Yes
Temperature measurement
Yes
Capacitance measurement
Yes
Frequency measurement
Yes
Max. voltage measuring circuit category
600 V
Degree of protection (IP)
IP30
Measured value memory
Yes
