General information

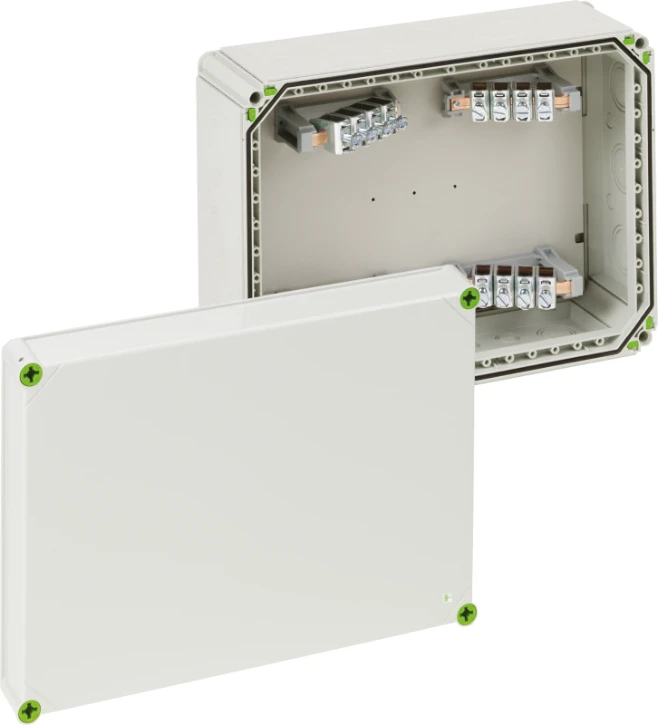

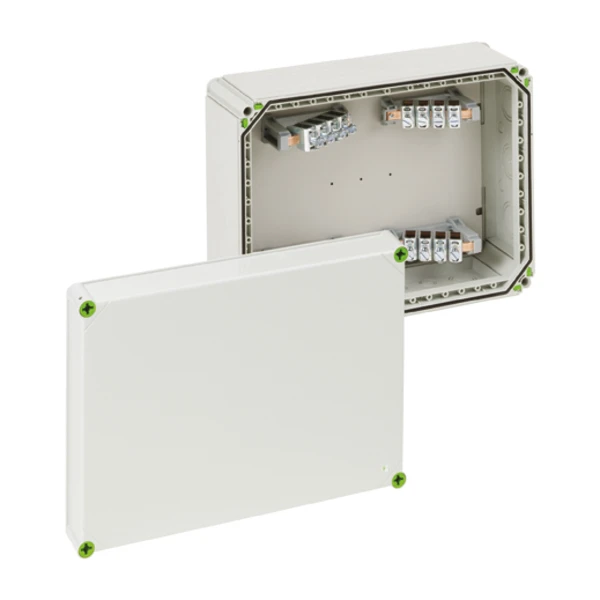

Abox-i 700-70²/4 Aftakdoos
Abox-i 700-70²/4 Aftakdoos
Ordercode YESSS
0311-5114
Product code
49047001
EAN code
04013902311927
Product group
Box/housing for surface mounting on the wall/ceiling
Brand
Spelsberg
Type
Abox-i 700-70²/4
Product description
Aftakdoos, met beschermingsgraad IP65, nominale doorsnede 70mm², Ui=690V AC, uitbreekmembranen, M16/M20/M25/M32/M40/M50, (24 zijkant), montage openingen aan de binnenzijde, voor industriële installaties en beschermde buiteninstallaties, grijs, met schroefklem 4-polig-70² (16-70²)
Afmetingen: 440 x 320 x 179mm
Product specifications
Max. conductor cross section
70 mm²
Equipped with
Screwed terminal
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
Inlet from the rear
No
Length
320 mm
Width
440 mm
Depth
179 mm
Connectable
No
Number of inlets
16
Type of housing feed-through
Preembossing
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP65
Cover model
Other
Transparent cover
No
Cover attachment
Screwed
Castable
Yes
Casting compound included
No
Sealable
Yes
Rated insulation voltage Ui
690 V
Circuit integrity
None
With screening
No
Weatherproof
No
Working temperature
-35 - 80 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
Model
Junction box
With strain relief
No
Number of cable glands included
0
Number of poles
4
Number of clamp positions per pole
4
RAL-number (similar)
7035
Outgoing connections with connectors for plug-in building installation
No
