General information

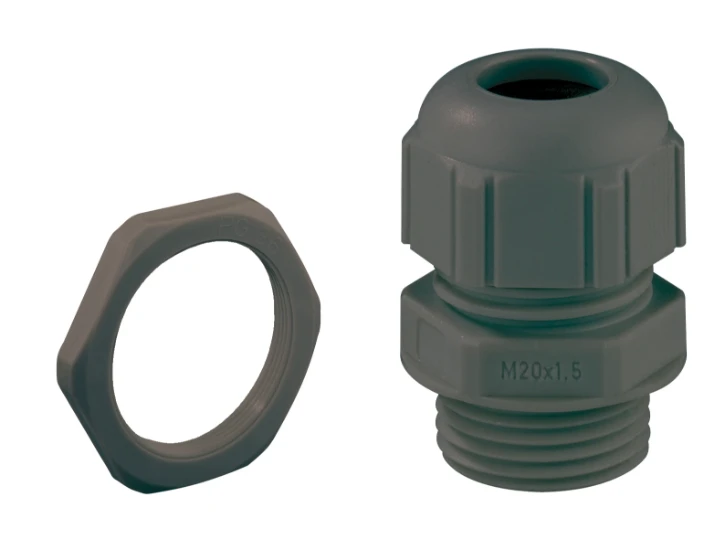

KVR M20-MGM kabelwartel
KVR M20-MGM kabelwartel
Ordercode YESSS
0311-6728
Product code
22742001
EAN code
04013902012541
Product group
Cable gland
Brand
Spelsberg
Type
KVR M20-MGM
Product description
Kabelwartel, IP68/IP69*, met trekontlasting, polyamide, M_ x 1,5mm, met contramoer, grijs
(* IP69 in combinatie met lege behuizingen en schakelkasten uit de GEOS-serie en aansluitdozen uit de Abox Pro-serie), Afdichtingsbereik 6-12mm, Schroefdraadlengte 9mm
Afmetingen: 26,5 x 26,5 x 36mm
Product specifications
Thread type
Metric
Nominal thread size metric/PG
20
Nominal thread size inch/gas pipe thread
Other
Pitch thread
1.5 mm
Thread length
9 mm
Wrench width
24 mm
Hexagon angular dimension
26.5 mm
Suitable for cable diameter
6 - 12 mm
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Halogen free
Yes
Glass-fibre reinforced
Yes
Degree of protection (IP)
IP68
Shock resistant
Yes
Colour
Grey
RAL-number
7035
Bend radius protection/trumpet flare
No
With locknut
Yes
Snapping in opening
No
Model
Straight
Multi seal area
No
Flat cable coupling
No
With strain relief
Yes
Type of sealing
Sealing ring
Separable screw gland
No
Working temperature
-25 - 100 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
EMC-version
No
Screened
No
Pressure-compensating
No
Connection type to housing
Screwing
For wall thickness
3 - 3 mm
Type of strain relief according to EN 62444
Type A
Material sealing
Other
