General information

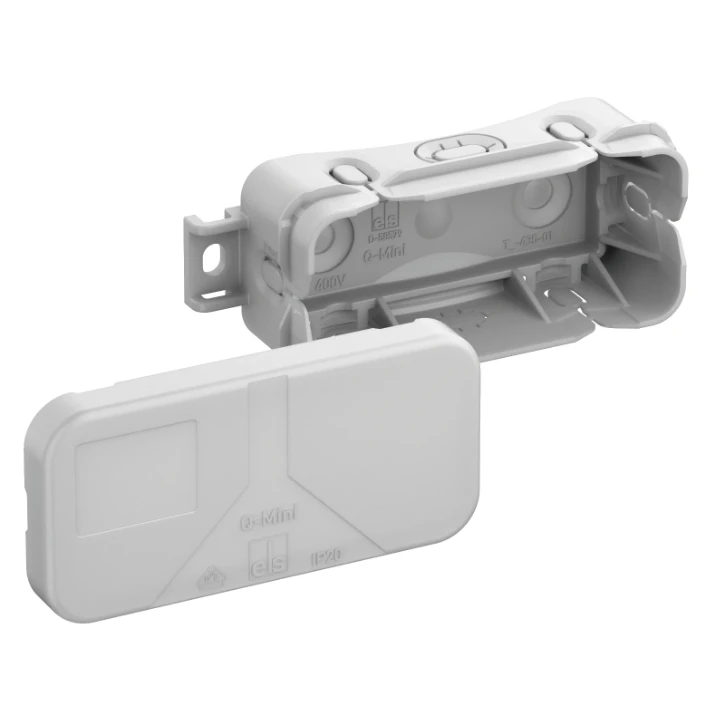

Q-Mini-L Aftakdoos
Q-Mini-L Aftakdoos
Ordercode YESSS
3049-2040
Product code
33490801
EAN code
04013902642311
Product group
Box/housing for surface mounting on the wall/ceiling
Brand
Spelsberg
Type
Q-Mini-L
Product description
Aftakdoos, met beschermingsgraad IP20, nominale doorsnede 2,5mm², Ui=400V AC, gecertificeerd conform VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), invoeringen met kabelbeveiliging, (2 achter, 8 zijkant), buitenliggende bevestigingsogen, voor standaard binneninstallaties, met kabelbevestiging, kabelinvoer van boven mogelijk, grijs, zonder klemmen
Afmetingen: 89 x 43 x 34mm
Product specifications
Max. conductor cross section
2.5 mm²
Equipped with
None
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
Inlet from the rear
Yes
Length
43 mm
Width
89 mm
Depth
34 mm
Connectable
No
Number of inlets
10
Type of housing feed-through
Preembossing
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP20
Cover model
Mounting cover
Transparent cover
No
Cover attachment
Snapped on
Castable
No
Casting compound included
No
Sealable
No
Rated insulation voltage Ui
400 V
Circuit integrity
None
With screening
No
Weatherproof
No
Working temperature
-25 - 40 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
Model
Junction box
With strain relief
No
Number of cable glands included
0
Number of poles
0
Number of clamp positions per pole
0
RAL-number (similar)
7035
Outgoing connections with connectors for plug-in building installation
No
