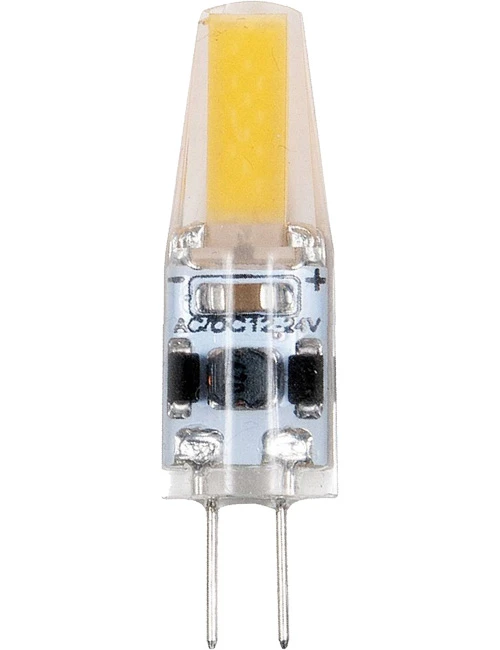

LED-lamp/Multi-LED SPL
Add to selection
General information
Ordercode YESSS
2296-8874
Product code
022451427
EAN code
08718739049161
Product group
LED-lamp/Multi-LED
Brand
SPL
Product specifications
Nominal voltage
12 - 12 V
Nominal current
125 - 125 mA
Power factor
1
Lamp power
1.5 - 1.5 W
Voltage type
AC/DC
Luminous flux
144 - 176 lm
Lamp efficacy
106.67 lm/W
Colour rendering index CRI
80-89
Lamp shape
Capsule/stick
Filament lamp
No
Type of glass/cover
Clear
Colour of light according to EN 12464-1
Warm white < 3300 K
Socket
G4
Colour
White
Colour temperature
2700 - 2700 K
Colour consistency (McAdam ellipse)
SDCM6
Dimmable
Yes
Diameter
10 mm
Length
35 mm
Degree of protection (IP)
IP20
Lamp designation
Other
Min. number of switching cycles
12500
Weighted energy consumption in 1000 hours
2 kWh
Average nominal lifetime
25000 h
Remote operation possible
No
With remote control
No
Photobiological safety according to EN 62471
RG0
Rated luminous flux according to IEC 62612
160 lm
Beam angle
360 - 360 °
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
Yes
Energy efficiency class according to EU regulation 2019/2015
F
With movement sensor
No
With twilight switch
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
