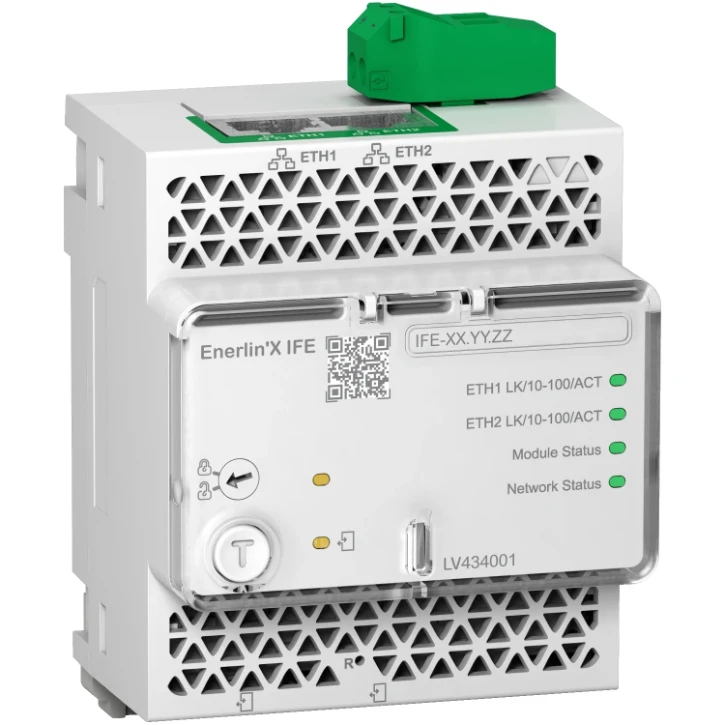

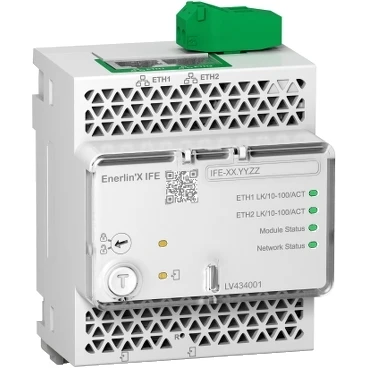

ComPacT - IFE Ethernet Module

  • 3019-1418
  • |
  • LV434001
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

ComPacT - IFE Ethernet Module ComPacT - IFE Ethernet Module
Ordercode YESSS
3019-1418
Product code
LV434001
EAN code
03606481283139
Product group
Fieldbus, decentr. periphery - communication module
Brand
Square D by Schneider Electric
Serie
Enerlin’X IFE, EIFE, IFM
Type
Veldbus dec periferie communicatie

Product description

Deze IFE is een Ethernet-interfacemodule en maakt deel uit van het EnerlinX-communicatiesysteem. Hij biedt Ethernet-toegang tot één Masterpact-, Compact- of PowerPact-stroomonderbreker. De gegevensstroom is 10/100 Mbps voor een eenvoudige ringbandverbinding. Hij is bovenaan uitgerust met één 24VDC-schroefklemmenblok en 2xRJ45-contactdozen voor Ethernet-netwerkaansluiting. Hij is onderaan uitgerust met twee RJ45-contactdozen voor ULP interne netwerkaansluiting (Universal Logic Plug). De IFE-interface is een DIN-rail montageframe en heeft afmetingen van 72x 105x71mm. De beschermingsgraad is IP4x op de voorzijde en IP2x op de connectoren. De IFE-interface maakt volledig deel uit van de EcoStruxure Power-architectuur en de voor Ethernet geschikte smart panels. De IFE-interfacefirmware kan worden geüpdatet met behulp van de EcoStruxure Power Commission-software.

Product specifications

Supply voltage DC
24 - 24 V
Voltage type (supply voltage)
DC
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for SERCOS
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Mobile communication standard GPRS
No
Mobile communication standard 2G (GSM)
No
Mobile communication standard 3G (UMTS)
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP2X
With potential separation
No
Fieldbus connection over separate bus coupler possible
No
Suitable for rail mounting
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
Yes
Suitable for safety functions
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
Level c
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
72 mm
Height
105 mm
Depth
71 mm
Radio standard eGPRS
No
Radio standard LTE
No
Number of HW-interfaces CAN
0
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Supporting protocol for EtherCAT
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location group A (acetylene)
No
Certified for UL hazardous location group B (hydrogen)
No
Certified for UL hazardous location group C (ethylene)
No
Certified for UL hazardous location group D (propane)
No
Certified for UL hazardous location group E (metal dusts)
No
Certified for UL hazardous location group F (carbonaceous dusts)
No
Certified for UL hazardous location group G (non-conductive dusts)
No
Manufacturer's website

Recommended products

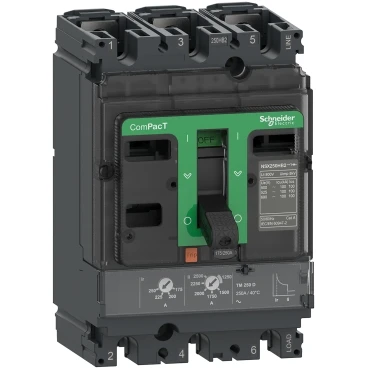

Power circuit-breaker for trafo/generator/installation protection Schneider Electric ComPacT NSX, new generation

ComPacT - Vermogenschakelaar - NSX250F - 36kA - AC - 3P3D - 250A - TMD

€ 1.153,60 /

€ 1.442,00 Gross price

0 | 3074-4101

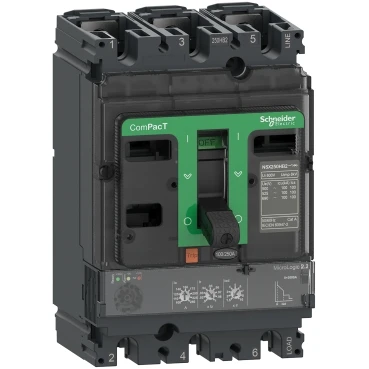

Power circuit-breaker for trafo/generator/installation protection Schneider Electric ComPacT NSX, new generation
