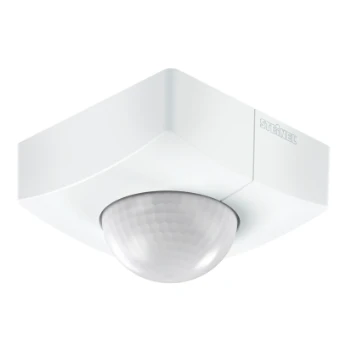

Movement sensor for bus system STEINEL
Add to selection
General information
Ordercode YESSS
3017-1145
Product code
057237
EAN code
04007841057237
Product group
Movement sensor for bus system
Brand
STEINEL
Product specifications
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Model
Movement sensor
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Other
Colour
White
RAL-number (similar)
9003
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
Yes
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
Yes
Optimum mounting height
2.8 m
Max. reach sideways
20 m
Max. reach frontally
20 m
Diameter reach on floor
8 m
Detection angle vertical
180 - 180 °
Detection angle horizontal
360 - 360 °
Width
95 mm
Height
78 mm
Depth
95 mm
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
