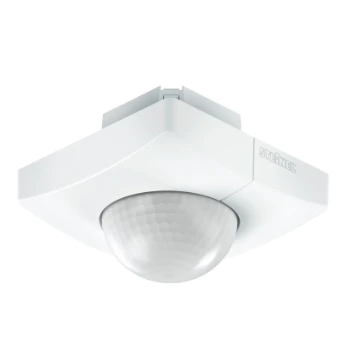

Movement sensor for bus system STEINEL
Add to selection
General information
Ordercode YESSS
3017-1146
Product code
057244
EAN code
04007841057244
Product group
Movement sensor for bus system
Brand
STEINEL
Product specifications
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Model
Movement sensor
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Other
Colour
White
RAL-number (similar)
9003
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
Yes
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
Yes
Optimum mounting height
2.8 m
Max. reach sideways
20 m
Max. reach frontally
20 m
Diameter reach on floor
8 m
Detection angle vertical
180 - 180 °
Detection angle horizontal
360 - 360 °
Min. depth of built-in installation box
66 mm
Width
94 mm
Height
78 mm
Depth
94 mm
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
