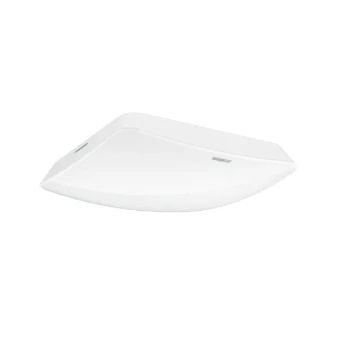

Movement sensor for bus system STEINEL
Add to selection
General information
Ordercode YESSS
3033-4546
Product code
056339
EAN code
04007841056339
Product group
Movement sensor for bus system
Brand
STEINEL
Product specifications
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
Yes
Model
Presence detector
Mounting method
Other
Material
Plastic
Material quality
Thermoplastic
Surface protection
Other
Colour
White
RAL-number (similar)
9003
Transparent
No
With bus connection
Yes
Substation input
Yes
Creep-under protection
Yes
Operation mode switch
Yes
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Switch-off delay self-learning
Yes
Optimum mounting height
2.8 m
Max. reach sideways
7.5 m
Max. reach frontally
7.5 m
Diameter reach on floor
15 m
Detection angle vertical
160 - 160 °
Detection angle horizontal
360 - 360 °
Number of channels
4
Min. switch-on time
30 s
Max. duty cycle
1092 min
Min. depth of built-in installation box
46 mm
