INSV TPPR 175 1050LM 840 PIR
Add to selection
General information
Ordercode YESSS
3140-2052
Product code
0030567
EAN code
05410288305677
Product group
Downlight/spot/floodlight
Brand
Sylvania
Serie
Insaver HE Topper LED 150
Type
INSV TPPR 175 1050LM 840 PIR
INSV TPPR 175 1050LM 840 PIR
INSV TPPR 175 1050LM 840 PIR
STOCK
IN STOCK
0
piece
Product description

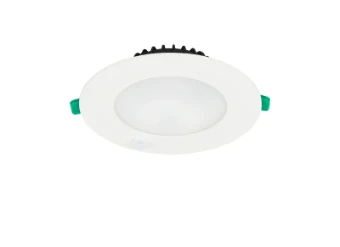

The Insaver Topper 175 1050LM 840 PIR is a high efficient non dimmable downlight luminaire with integrated PIR sensor, Colour rendering index Ra>80, Colour temperature: 4000 Neutral White,Class II, Protection rating IP54/20 ,Cut out dimensions: 175mm.
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Not adjustable
With movement sensor
Yes
With light sensor
No
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Surface protection
Other
Housing colour
Other
Surface brushed
No
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
100000 h
Impact strength
IK07
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-10 - 40 °C
Max. system power
9.5 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
50 mm
Height/depth
50 mm
Length
50 mm
Outer diameter
195 mm
Type of wiring
Loop-through wiring included
Number of poles
2
Conductor cross section
1.5 mm²
Connectable conductor cross section
0.75 - 1.5 mm²
Connection type
Push-in clamp
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
850 °C - 30 s
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM3
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
0 %
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Built-in diameter
175 - 175 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
77
Max. number of luminaires per miniature circuit breaker C16 (MCB)
96
IFTTT support available
No
Unified Glare Ratio (UGR)
28
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Nominal current
44 - 48 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Operation by Bluetooth
No
Compatible with Casambi
No
Movement sensor/presence detector technology
Passive infrared
Dimmable
No
With presence detector
Yes
Containing product according to 2019/2020/EU
Yes
Total harmonic distortion (THD)
20 %
Rated luminous flux according to IEC 62722-2- 1
1050 - 1050 lm
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP54
Emergency power supply system
None
Emergency function monitoring system
None
Luminaire efficacy
111 - 111 lm/W
Built-in height
150 - 150 mm
Product information
