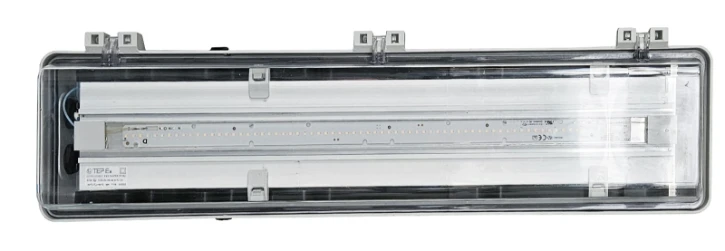

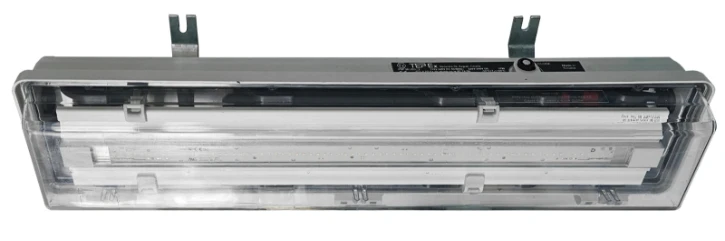

ATEX/IECEx LED armatuur zone 1/21 70W 9390lm

3121-8205
|
T100001

0 piece in stock

Don’t have an account? Request account

Over 6.000 products in stock
Order before 17:00 and receive your order the next working day!
Need help? Call --- --- or contact us via email at [email protected]

General information

ATEX/IECEx LED armatuur zone 1/21 70W 9390lm ATEX/IECEx LED armatuur zone 1/21 70W 9390lm

Ordercode YESSS

3121-8205

Product code

T100001

EAN code

03858895430245

Product group

Explosion proof luminaire fixed mounting

Brand

TEPEx

Serie

PSF LED armatuur

Type

PSF 52 LED-2

Product description

ATEX/IECEx Ex-e verhoogd veilige LED armatuur zone 1/21, 100-305VAC - 142-431VDC, 70W, 9390lm, voorzien van 2xM25 wartels en 2xM25 blindpluggen. Afmeting 1370x800x130mm. Kleurtemperatuur 4300K, afwijkende kleurtemperatuur op aanvraag. Behuizing van glasvezel versterkt polyster, kleur 7038. Scharnierende lens van polycarbonaat, voorzien van siliconen afdichting. Centrale vergrendeling kan worden geopend en gesloten met een inbussleutel SW8. Armatuur wordt geleverd met inbussleutel en montageset PSF 30-110. Markering voor gas zones: Ex II 2G; Ex db eb mb op is IIC T4 Gb. Markering voor stof zones: Ex II 2D; Ex tb op is IIIC T80°C Db IP66. ATEX certificaat: FIDI 19 ATEX 0029

Product specifications

Mounting method

Wall-/ceiling mounting

Adjustable

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

Lamp holder

Other

Housing material

Plastic

Material cover

Plastic matt/satinized

Voltage type

AC/DC

Nominal voltage

110 - 240 V

Type of control gear

LED operating device current-controlled

With control gear

Yes

Light distributor

Diffuser lens/optic/panel

Beam angle

> 80° - Extreme wide beam

Rated lifetime L70/B50 at 25 °C

70000 h

Degree of protection (IP)

IP66

Degree of protection (NEMA)

Other

Impact strength

IK08

Protection class according to IEC 61140

For Ex-zone gas

1, 2

For Ex-zone dust

21, 22

Rated ambient temperature according to IEC 62722-2-1

-30 - 55 °C

Suitable for lamp power

70 - 70 W

Max. system power

70 W

Colour of light

White

Colour temperature

4300 - 4300 K

Power factor

0.95

Width

200 mm

Height/depth

130 mm

Length

1370 mm

Type of wiring

Loop-through wiring included

Number of poles

Conductor cross section

4 mm²

Connection type

Screwed terminal

Exchangeable control gear

Yes

Constant light output (CLO)

Max. number of luminaires per miniature circuit breaker B16 (MCB)

Max. number of luminaires per miniature circuit breaker C16 (MCB)

Nominal current

450 - 450 mA

Energy efficiency class of the light source according to EU regulation 2019/2015

Luminaire efficacy

132 lm/W

With movement sensor

With presence detector

Movement sensor/presence detector technology

Other

With light sensor

Rated luminous flux according to IEC 62722-2- 1

9390 - 9390 lm
