General information

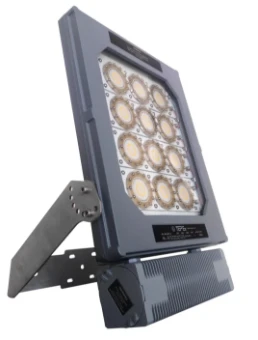

ATEX LED Floodlight zone 1/21 320W 34500lumen
ATEX LED Floodlight zone 1/21 320W 34500lumen
Ordercode YESSS
3121-8214
Product code
T100012
EAN code
03858895430016
Product group
Explosion proof luminaire fixed mounting
Brand
TEPEx
Serie
RLF LED Floodlight
Type
RLF 320 LED-2
Product description
ATEX Ex-e verhoogd veilige floodlight/highbay zone 1/21, 110-240VAC ±10%, 320W, 34500lm, voorzien van 2x messing vernikkelde wartels. Kleurtemperatuur 4700K, afwijkende kleurtemperatuur op aanvraag. Behuizing is poedergecoat aluminium. Borosilicaat lens met siliconen afdichting. Inclusief montagebeugel. Markering voor gas zones: Ex II 2G; Ex db eb op is IIC T4 Gb. Markering voor stof zones: Ex II 2D; Ex tb op is IIIC T100°C Db IP66. ATEX certificaat: FIDI 23 ATEX 0004
Product specifications
Mounting method
Other
Adjustable
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Aluminium
Material cover
Glass transparent
Voltage type
AC/DC
Nominal voltage
90 - 305 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Light distributor
Diffuser lens/optic/panel
Beam angle
> 80° - Extreme wide beam
Rated lifetime L70/B50 at 25 °C
100000 h
Degree of protection (IP)
IP66
Degree of protection (NEMA)
Other
Impact strength
IK08
Protection class according to IEC 61140
I
For Ex-zone gas
1, 2
For Ex-zone dust
21, 22
Rated ambient temperature according to IEC 62722-2-1
-30 - 50 °C
Suitable for lamp power
320 - 320 W
Max. system power
320 W
Colour of light
White
Colour temperature
4000 - 6500 K
Power factor
0.95
Width
410 mm
Height/depth
72 mm
Length
600 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
5
Conductor cross section
4 mm²
Connection type
Screwed terminal
Exchangeable control gear
Yes
Constant light output (CLO)
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
16
Max. number of luminaires per miniature circuit breaker C16 (MCB)
20
Nominal current
1300 - 1300 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
A
Luminaire efficacy
97 lm/W
With movement sensor
No
With presence detector
No
Movement sensor/presence detector technology
Other
With light sensor
No
Rated luminous flux according to IEC 62722-2- 1
34500 - 34500 lm
