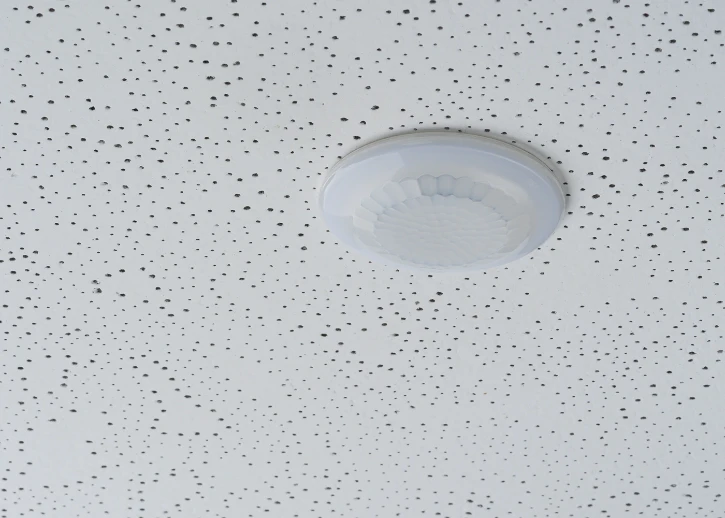

Aanwezigheidsmelder Standard, 1xlicht, plafondinbouw DE, 360°, Ø12m, w
- 3121-2386
- |
- 1030055
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Aanwezigheidsmelder Standard, 1xlicht, plafondinbouw DE, 360°, Ø12m, w
Aanwezigheidsmelder Standard, 1xlicht, plafondinbouw DE, 360°, Ø12m, w
Ordercode YESSS
3121-2386
Product code
1030055
EAN code
04003468101957
Product group
Movement sensor/presence detector complete
Brand
Theben
Serie
LUXA-GST
Type
LUXA 103 S360-100-12 GST
Product description

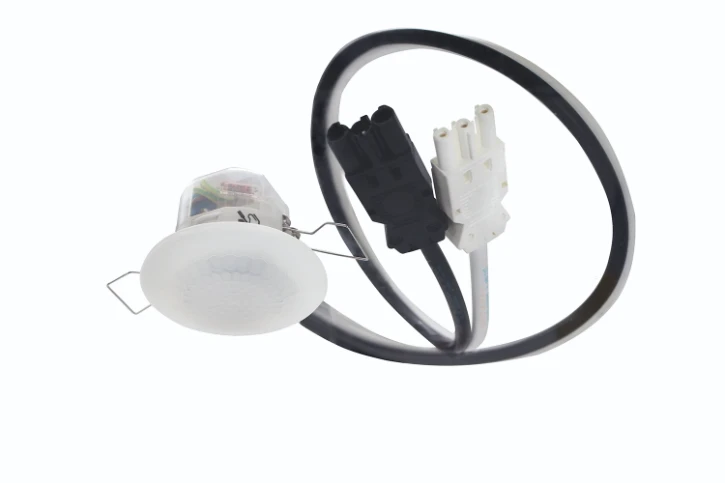

Aanwezigheidsmelder (PIR), met kabel en Wieland GST18-connectoren, detectiebereik rond 12 m, 1 x verlichting
Product specifications
Model
Presence detector
Constant light control
No
HVAC-control
No
Forced switch on
No
Forced switch off
No
Animal zone
No
Creep-under protection
No
Networkable
Yes
Scan angle
360 °
Optimum mounting height
3 m
Staircase light controller
Yes
Bridging switch
Yes
Max. reach sideways
6 m
Max. presence range
50 m²
Max. reach frontally
6 m

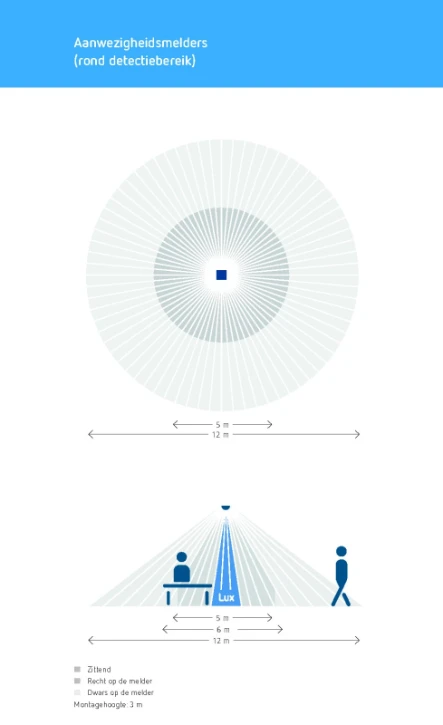

Diameter reach on floor
12 m
Suitable for wireless transmission
No
Remote operation
Yes
With remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
Yes
Teach-function for response value luminosity
Yes
Suitable for ceiling mounting
Yes
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Connection type
Blade terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP54
Impact strength
IK04
Voltage type
AC
Frequency
50 - 50 Hz
Min. switch-on time
15 s
Max. duty cycle
30 min
Switch-off delay
15 s
Detection angle horizontal
0 - 360 °
Response value luminosity
5 - 1000 lx
Max. switching power
2300 W
Suitable for C-load
Yes
Max. starting current
500 A
Min. starting current
0.01 A
Substation input
Yes
With alarm function
No
Width
80 mm
Height
62 mm
Depth
80 mm
Diameter
80 mm
Built-in depth
50 mm
Built-in diameter
60 mm
Min. depth of built-in installation box
61 mm
Max. switching power LED
400 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
230 - 230 V
Suitable for wall mounting
No
Background monitoring
No
With acoustic sensor
No
With connection cable
Yes
Connection cable length
900 mm
Ceiling built-in mounting without installation box
Yes
Compatible with Casambi
No
Movement sensor/presence detector technology
Passive infrared
Ambient temperature
-25 - 55 °C
