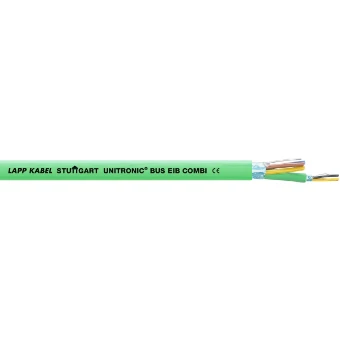

UNITRONIC BUS EIB 2x2x0.8 - 100 MTR
Add to selection
General information
Ordercode YESSS
3081-3303
Product code
2170240
EAN code
04044774750224
Product group
Data and communication cable
Brand
UNITRONIC
Serie
Bus system EIB
Type
UNITRONIC BUS EIB / KNX
UNITRONIC BUS EIB 2x2x0.8 - 100 MTR
UNITRONIC BUS EIB 2x2x0.8 - 100 MTR
STOCK
IN STOCK
400 meter
Product specifications
Conductor surface
Bare
Nominal cross section conductor
0.8 mm²
Conductor category
Class 1 = solid
Number of cores
4
Number of stranding elements
2
Stranding element
Pairs
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Colour
Screen over stranding element
Foil
Stranding
Bundle
Screen over stranding
Foil
Longitudinal water blocking cable
No
Radial water blocking cable
No
Material outer sheath
Polyvinyl chloride (PVC)
Colour outer sheath
Green
Reaction-to-fire according to EN 13501-6: Class
Eca
Halogen free according to EN IEC 60754-2
No
Low smoke according to EN IEC 61034-2
No
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
6.6 mm
Min. permitted bending radius, stationary application/permanent installation
33 mm
Permitted cable outer temperature after assembling without vibration
-30 - 70 °C
Suitable for underground installation
No
Conductor material
Copper
Core identification according to HD 308 S2
No
Armouring/reinforcement
Armouring tape
Material armouring
Aluminium
Cable geometry
Round
Certified for shipboard application
No
Suitable as telephone cable
No
Suitable as computer data cable
Yes
Suitable as signalling cable
Yes
Weight
54 kg/km
Drain wire
No
Characteristic impedance
85 Ohm
With rodent protection
No
Flame retardant according to IEC 60332-1-2
No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
No
Flame retardant according to IEC 60332-3-22 (Cat A)
No
Flame retardant according to IEC 60332-3-23 (Cat B)
No
Flame retardant according to IEC 60332-3-24 (Cat C)
No
Flame retardant according to IEC 60332-3-25 (Cat D)
No
Halogen free according to EN IEC 60754-1
No
Halogen free according to EN IEC 60754-3
No
Circuit integrity according to IEC 60331-23
No
Suitable for use as security alarm cable
No
With rip cord
No
