2-draads zekeringsklem met draaibare zekeringhouder met afsluitplaat g
- 0932-6269
- |
- 2002-1611/1000-836
39
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

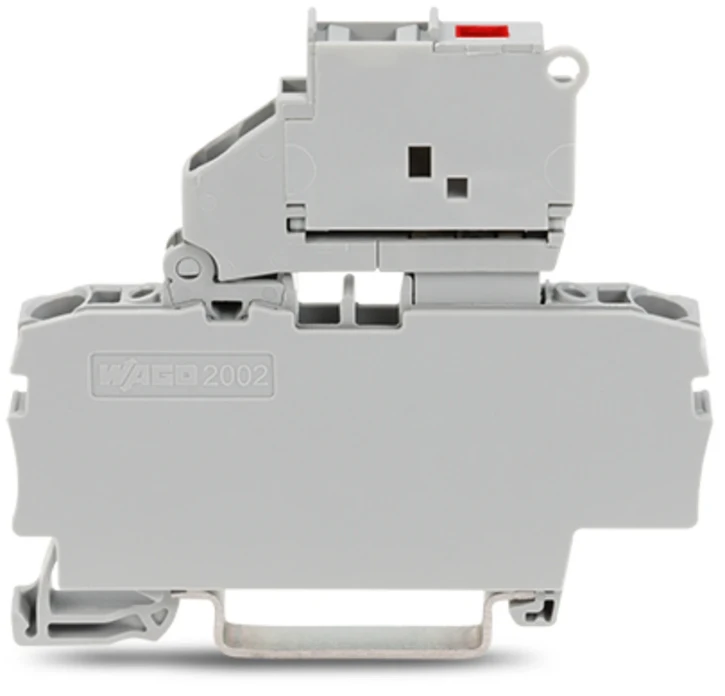

2-draads zekeringsklem met draaibare zekeringhouder met afsluitplaat g
2-draads zekeringsklem met draaibare zekeringhouder met afsluitplaat g
Ordercode YESSS
0932-6269
Product code
2002-1611/1000-836
EAN code
04055143870375
Product group
Fuse terminal block
Brand
Wago
Serie
Serie 2002
Type
2002-1611/1000-836
Product description
2-draads zekeringsklem met draaibare zekeringhouder met afsluitplaat voor G-smeltpatroon 5 x 20 mm met defectindicatie via LED 230 V voor draagr
Product specifications
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
LED
Supply voltage for defect-indication
230 - 230 V
Voltage type for defect indication
AC
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Rated current In
6.3 A
Rated voltage
250 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
105 - 105 °C
Closing plate required
No
Colour
Grey

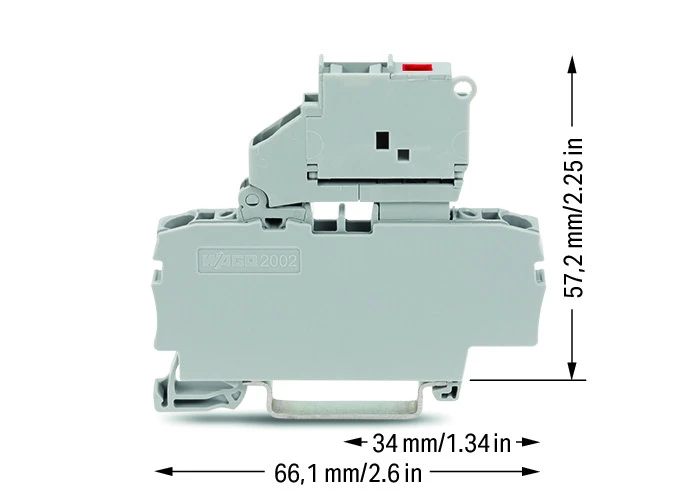

Width
6.2 mm
Height
66.1 mm
Depth
57.2 mm
Inflammability class of insulation material according to UL 94
V0
