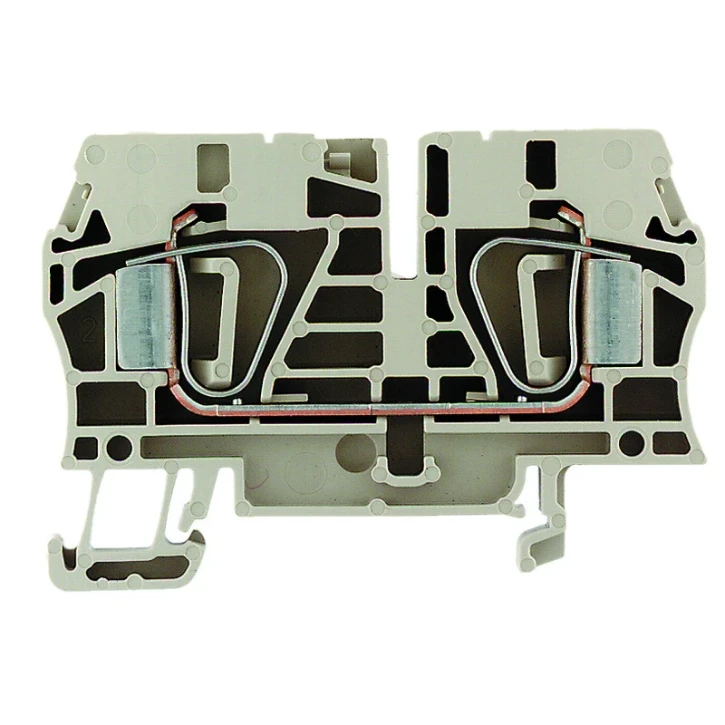

Feed-through terminal block, Tension-clamp connection, dark beige, 6 m
Add to selection
General information
Ordercode YESSS
0277-4290
Product code
1608620000
EAN code
04008190207892
Product group
Feed-through terminal block
Brand
Weidmüller
Serie
Z-series
Type
ZDU 6
Feed-through terminal block, Tension-clamp connection, dark beige, 6 m
Feed-through terminal block, Tension-clamp connection, dark beige, 6 m
STOCK
IN STOCK
38
piece
Product description
Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.22 - 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.22 - 6 mm²
Connectable conductor cross section solid-core
0.22 - 10 mm²
Connectable conductor cross section multi-wired
0.22 - 6 mm²
Rated current In
41 A
Rated voltage
800 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
-50 - 120 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Width
8.1 mm
Height
65 mm
Depth
45 mm
Suitable for conductor material
Copper
Inflammability class of insulation material according to UL 94
V0
