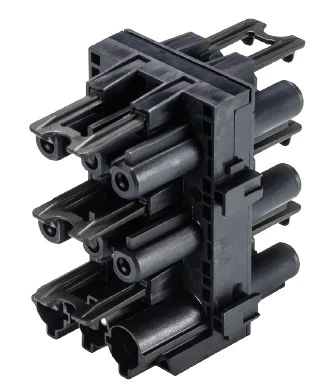

Compact distributor for plug-in building installation Wieland
Add to selection
General information
Ordercode YESSS
3133-1484
Product code
92.030.0953.1
EAN code
04049088391910
Product group
Compact distributor for plug-in building installation
Brand
Wieland
Product specifications
Rated voltage
250 V
Rated current
20 A
Number of poles
3
Degree of protection (IP)
IP20
Number of inputs
1
Number of outputs
5
Phase pickup
L1
Pole codification
L, N, PE
Mechanical coding
Yes
Colour coding/contact insert
Black
Colour of the separate adaptor piece
Black
Type of locking
Integrated in plug-in connector
Halogen free
Yes
Max. continuous temperature resistance contact part
100 °C
Max. continuous temperature resistance strain relief
100 °C
Housing material
Polyamide (PA)
Fire load
0.22 kWh
Contact material
Other
Surface coating contacts
Silver-plated
Pollution degree
0.216
Rated surge voltage
4 kV
Length
58 mm
Height
52.5 mm
Width
34.9 mm
Type of distributor
HH-distributor
Mounting possibility
With separate adaptor
RAL-number coding/contact insert
9005
