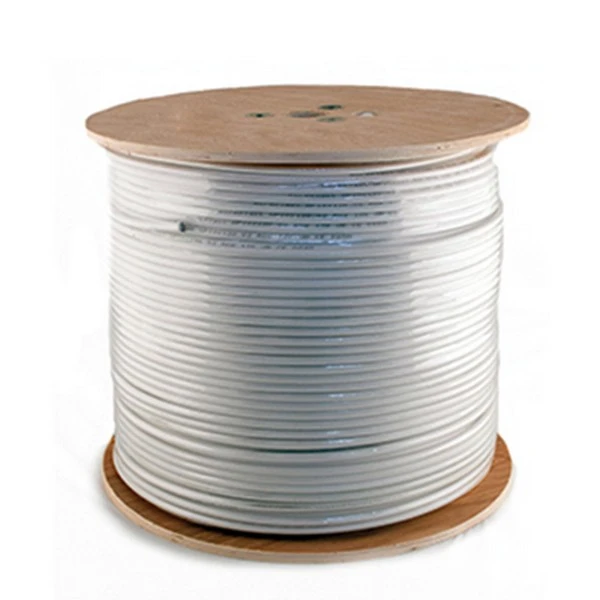

Coaxial cable WIREPLAST
Add to selection
General information
Ordercode YESSS
1561-3009
Product code
WP100120.03
Product group
Coaxial cable
Brand
WIREPLAST
Product specifications
Diameter inner conductor
1.02 mm
Inner conductor material
Copper
Inner conductor surface
Tinned
Inner conductor category
Class 1 = solid
Diameter outer conductor
7.54 mm
Outer conductor material
Aluminium
Outer conductor surface
Tinned
Type of outer conductor
Braiding
Dielectric
Polyethylene, foamed (foam PE)
Number of screen layers
4
Material outer sheath
Polyvinyl chloride (PVC)
Colour outer sheath
White
Reaction-to-fire according to EN 13501-6: Class
Eca
Characteristic impedance
75 Ohm
Outer diameter approximate
7.54 mm
Min. permitted bending radius, moving application with forced guidance
20 mm
Min. permitted bending radius, moving application/free movement
25 mm
Suitable for underground installation
No
Permitted cable outer temperature during assembling/handling
5 - 5 °C
Permitted cable outer temperature after assembling without vibration
5 - 5 °C
Armouring/reinforcement
Braiding
With rodent protection
No
Circuit integrity according to IEC 60331-23
No
Paired co-axial cable
No
Number of sheath layers
1
