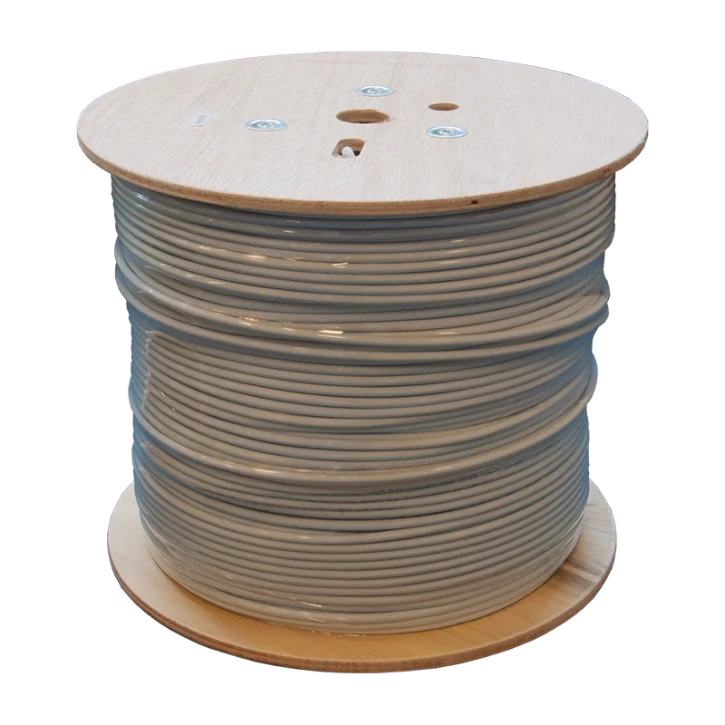

Bulk kabel Cat.6 UTP massief LSZH AWG24 Grijs 500 meter
- 3020-0521
- |
- ZN500BC13905000
1
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Bulk kabel Cat.6 UTP massief LSZH AWG24 Grijs 500 meter
Bulk kabel Cat.6 UTP massief LSZH AWG24 Grijs 500 meter
Ordercode YESSS
3020-0521
Product code
ZN500BC13905000
EAN code
08719357017938
Product group
Data and communication cable
Brand
Zybrnet 500
Serie
Cat.6
Type
UTP
Product description
Product specifications
Conductor surface
Bare
Diameter conductor
0.511 mm
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Core identification
Colour
Screen over stranding element
None
Stranding
Bundle
Screen over stranding
None
Longitudinal water blocking cable
No
Radial water blocking cable
No
Colour outer sheath
Grey
Reaction-to-fire according to EN 13501-6: Class
Dca
Reaction-to-fire according to EN 13501-6: Smoke production
s3
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d2
Reaction-to-fire according to EN 13501-6: Acidity
a3
Halogen free according to EN IEC 60754-2
Yes
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
5.4 mm
Category
6
Suitable for underground installation
No
Conductor material
Copper
AWG size
24
Armouring/reinforcement
None
Cable geometry
Round
Certified for shipboard application
No
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Cable type
U/UTP
With rodent protection
No
Halogen free according to EN IEC 60754-1
Yes
Circuit integrity according to IEC 60331-23
No
Number of sheath layers
1
