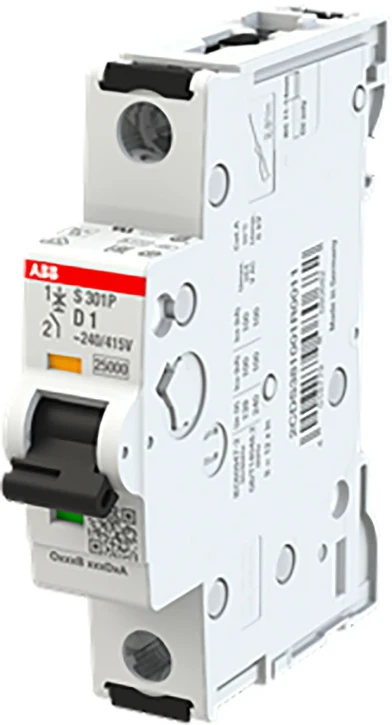

Installatie automaat 25kA, 1P, Kar D 1A

  • 3097-5979
  • |
  • 2CDS381001R0011
0 pièce en stock
Connectez-vous pour commander
Vous n'avez pas de compte ? Compte de demande
  • Products Plus de 6 000 produits en stock
  • Commandez avant 17h00 et recevez votre commande le jour ouvrable suivant !
  • Besoin d'aide? Appelez le +352 27 3921

informations générales

Installatie automaat 25kA, 1P, Kar D 1A Installatie automaat 25kA, 1P, Kar D 1A
Code de commande
3097-5979
Code produit
2CDS381001R0011
Code EAN
04016779080682
Groupe de produits
Disjoncteur
Marque
ABB Componenten
Série
System pro M compact
Série
S301P-D1

Description du produit

De S301P-D1 uit de System pro M compact-serie is een installatieautomaat voor betrouwbare beveiliging van industriële verdeelinrichtingen en machinebesturingen. Hij schakelt circuits snel af bij overbelasting en kortsluiting, zodat stilstand en gevolgschade worden beperkt.Met een kortsluitvermogen van 25 kA is hij geschikt voor zware netten. De D-karakteristiek voorkomt ongewenst afschakelen bij hoge inschakelstromen, ideaal voor motoren en transformatoren, terwijl de 1 A-uitvoering precieze, fijnselectieve beveiliging biedt voor gevoelige afgaande groepen. Conform internationale IEC- en UL-normen kan hij wereldwijd uniform worden toegepast.De compacte bouw voor DIN-railmontage past naadloos in System pro M compact-borden en ondersteunt snelle bekabeling met doorverbindingskam en uitbreiding met hulpcontacten, voor efficiënte engineering en onderhoud.

Spécifications du produit

Caractéristique de déclenchement
D
Nombre de pôles (total)
1
Nombre de pôles protégés
1
Courant nominal assigné
1 A
Tension assignée
240 V
Tension d'isolation assignée Ui
500 V
Tension nominale de tenue aux chocs Uimp
6 kV
Pouvoir de coupure assigné Icn selon EN 60898 à 230 V
100 kA
Type de tension
CA/CC
Fréquence
50 - 60 Hz
Conducteur neutre branché simultanément
Non
Catégorie de surtension
4
Degré de pollution
3
Dispositifs auxiliaires possibles
Oui
Largeur dans les unités de partition
1
Profondeur d'encastrement
69 mm
Classe de protection (IP)
IP20
Température ambiante en fonctionnement
-40 - 70 °C
Section de conducteur connectable multifilaire
0.75 - 25 mm²
Section de conducteur connectable monofilaire
0.75 - 35 mm²
Montage encastré
Non
Antidéflagration
Non
Puissance dissipée
1.3 W
Site web du fabricant
