SENTRON, 3NP1 fuse switch disconnector, 3-pole, NH000 narrow, 125 A
- 3067-9598
- |
- 3NP11131BC26
-
Plus de 6 000 produits en stock
-
Commandez avant 17h00 et recevez votre commande le jour ouvrable suivant !
- Besoin d'aide? Appelez le +352 27 3921
informations générales
Description du produit

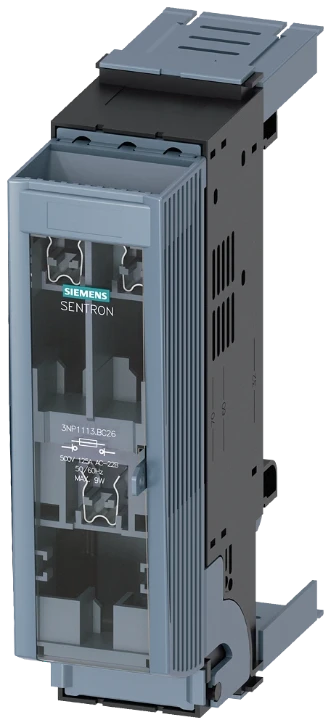

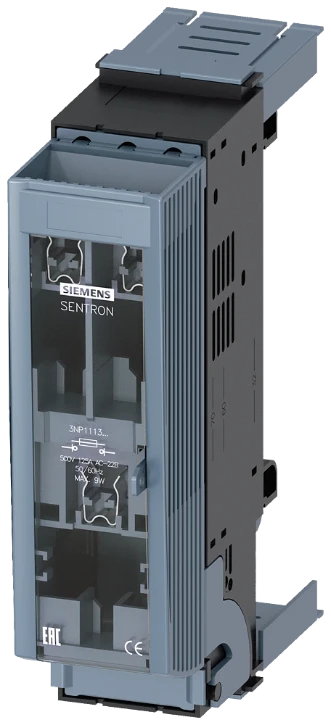

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for busbar systems 60 mm, box terminal, cable outlet downwards with auxiliary switch 1 CO Cover level 32/60/70 mm Fuse switch disconnector SENTRON 3NP1 3NP fuse switch disconnector up to 630 A with enhanced protection for personnel and plants and user-friendly connection system.. The fuse switch disconnectors have an electronic fuse monitoring function that enables optional line monitoring. Flexible switching times of the auxiliary switch are possible. The reach-round and touch protection incorporated as standard in the new SENTRON 3NP1 series prevents users from touching current conducting parts when mounting on a busbar system, even when accessing at the rear. 3NP1 fuse switch disconnectors are available in 1-, 3- and 4-pole versions for currents from 125 A to 630 A up to degree of protection IP40. Optimized technology for your safety - only from Siemens.
