Mureva - Verdeler met DIN-rail - 1x12 modulen - Met

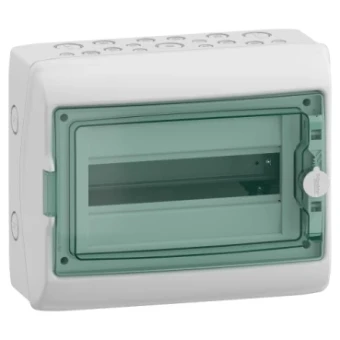

This Mureva Enclosure weatherproof enclosure is a surface mounted enclosure for modular device. It is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. It comes with 1 terminal block with 16 outgoers (8x10mm² + 8x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 24W. The In rated current is up to 63A. This product complies with the IEC 60670-1 and -24 standards. The dimensions are (W) 340mm x (H) 280mm x (D) 160mm. The materia
