Verbindingsrijgklem Siemens AG

Toevoegen aan selectie
Algemene informatie
Bestelnummer YESSS
3073-0581
Artikelnummer fabrikant
8WH10000AF00
EAN code
04001869402857
Artikelgroep
Verbindingsrijgklem
Merk
Siemens AG
Type

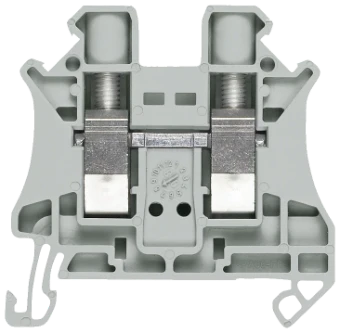

TERMINALS. 2,5QMM,5,2MM, GREY
Through-type terminal with screw connection, terminal size 2.5 mm2 ter Through-type terminal with screw connection, terminal size 2.5 mm2 ter
Product omschrijving

Terminal, screw terminal, through-type terminal, 2.5 mm², gray Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens.

Product specificaties
Aansluitbare geleiderdoorsnede fijndraads zonder adereindhuls
0.14 - 4 mm²
Aansluitbare geleiderdoorsnede fijndraads met adereindhuls
0.14 - 2.5 mm²
Aansluitbare geleiderdoorsnede eendraads
0.14 - 4 mm²
Aansluitbare geleiderdoorsnede meerdraads
0.14 - 1.5 mm²
Nom. (meet)stroom In
24 A
Nom. (meet)spanning
1000 V
Uitvoering elektrische aansluiting 1
Schroefaansluiting
Uitvoering elektrische aansluiting 2
Schroefaansluiting
Aantal aansluitniveaus
1
Aantal klemposities per aansluitniveau
2
Montagewijze
DIN-rail 35 mm
Bedrijfstemperatuur
-60 - 105 °C
Explosiegeteste uitvoering Ex-e
Ja
Afsluitplaat noodzakelijk
Ja
Kleur
Grijs
Intern verbonden etages
Nee
Hoogte
48 mm
Diepte
46.9 mm
meer specificaties
^
