Automatische sterdriehoekschakelaar SDAINLM22(400V50HZ)
Add to selection
General information
Ordercode YESSS
0043-3972
Product code
101382
EAN code
04015081011254
Product group
Combination of contactors
Brand
Eaton
Serie
SDAINL
Type
SDAINLM22(400V50HZ)

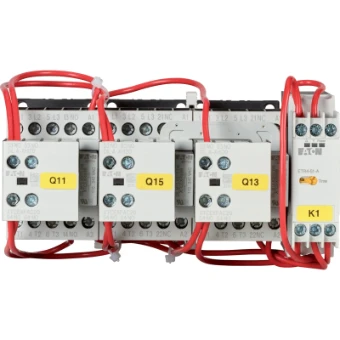

Automatische sterdriehoekschakelaar SDAINLM22(400V50HZ)
Automatische sterdriehoekschakelaar SDAINLM22(400V50HZ)
STOCK
IN STOCK
0
piece
Product description
Ster-driehoek combinatie, Toepassing: ster-driehoek motorstarter voor motorstartercombinaties, bedrijfsfrequentie: maximaal 30 starts per uur, Toebehoren: sterdriehoek combinaties SDAINL, Gebruikscategorie: NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, Nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 22 A, Max. vermogen voor driefasige motoren, 50 - 60 Hz AC-3 220 V 230 V: P= 5,5 kW, 380 V 400 V: P= 11 kW, 500 V: P= 11 kW, 660 V 690 V: P= 11 kW, Max. omschakeltijd: 20 s, Stuurspanning: 400 V 50 Hz, Spanning AC/DC: AC-bedrijf, Afzonderlijke componenten van de combinatie Net-magneetchakelaar Q11: DILM12-10
Product specifications
Function
Star-delta contactor
Rated control supply voltage AC 50 Hz
400 - 400 V
Rated control supply voltage AC 60 Hz
0 - 0 V
Rated control supply voltage DC
0 - 0 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
22 A
Rated operation power at AC-3, 400 V
11 kW
Rated operation power NEMA
0 kW
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP20
Degree of protection (NEMA)
Other
Rated operation current Ie at AC-1, 400 V
22 A
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
9
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Suitable for rail mounting
No
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
24 - 690 V
Operating voltage AC 60 Hz
24 - 690 V
Operating voltage DC
0 - 0 V
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
3
Number of auxiliary contacts as change-over contact
0
Width
158 mm
Height
82 mm
Depth
117 mm
