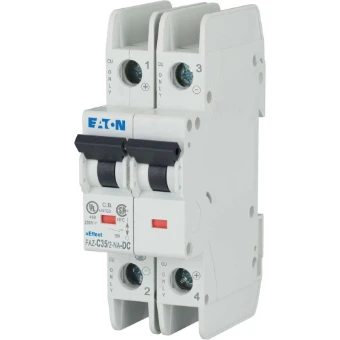

Installatie-automaat (MCB) FAZ-NA, 2P, 35A, C-curve, 10kA, UL-cert.
Add to selection
General information
Ordercode YESSS
3044-4915
Product code
120649
EAN code
04015081184798
Product group
Miniature circuit breaker (MCB)
Brand
Eaton
Serie
xEffect
Type
FAZ-C35/2-NA-DC
Installatie-automaat (MCB) FAZ-NA, 2P, 35A, C-curve, 10kA, UL-cert.
Installatie-automaat (MCB) FAZ-NA, 2P, 35A, C-curve, 10kA, UL-cert.
STOCK
IN STOCK
0
piece
Product description
Installatieautomaat (MCB), FAZ-DC, 2-polig, afschakelkarakteristiek: C, nominale stroom In: 35 A, nominaal schakelvermogen (IEC/EN 60947-2): 10 kA, Schakelapparatuur voor export naar Noord-Amerika (UL-gecertificeerd)
Product specifications
Release characteristic
C
Number of poles (total)
2
Number of protected poles
2
Rated current
35 A
Rated voltage
250 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
Voltage type
DC
Frequency
50 - 60 Hz
Current limiting class
3
Concurrently switching neutral conductor
No
Overvoltage category
3
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
2
Built-in depth
70.5 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 75 °C
Connectable conductor cross section multi-wired
1 - 25 mm²
Connectable conductor cross section solid-core
1 - 25 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
2.8 W
