General information

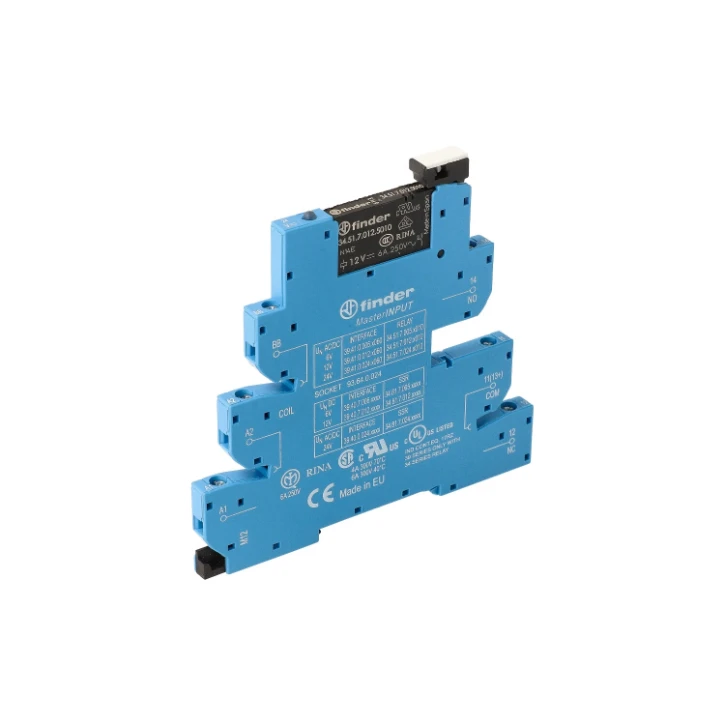

FIN INTERF.RELAIS MasterINPUT 1W 2A 12VUC
FIN INTERF.RELAIS MasterINPUT 1W 2A 12VUC
Ordercode YESSS
1562-3728
Product code
39.41.0.012.5060
EAN code
08012823357133
Product group
Switching relay
Brand
Finder
Serie
39
Type
39.41.0.012.5060
Product description
Interfacerelais (voet+relais), MasterINPUT, schroefaansluiting, 6,2 mm breed, 1 wisselcontact 6A /250VAC1, aansluitspanning 12 VAC/DC, contactmateriaal AgNi+Au, LED-indicatie en EMC-bescherming
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Nominal current
6 A
Rated control supply voltage AC 50 Hz
12 - 12 V
Rated control supply voltage AC 60 Hz
12 - 12 V
Rated control supply voltage DC
12 - 12 V
Voltage type for actuating
AC/DC
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
Yes
With LED indication
Yes
Degree of protection (IP)
IP20
Width
6.2 mm
Height
90.7 mm
Depth
94.3 mm
Material of contact surface
Gold
Material contact
Silver nickel (AgNi)
Voltage type (operating voltage)
AC/DC
Operating voltage AC 50 Hz
9.6 - 13.2 V
Operating voltage AC 60 Hz
9.6 - 13.2 V
Operating voltage DC
9.6 - 13.2 V
Max. starting current
10 A
