General information

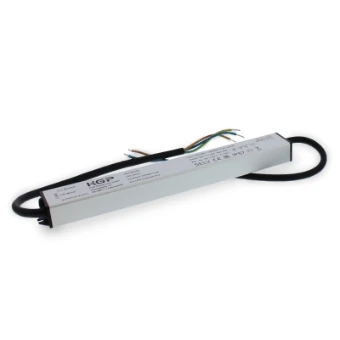

Leddriver constante spanning 24V, 30W, IP67
Leddriver constante spanning 24V, 30W, IP67
Ordercode YESSS
1347-6718
Product code
860158
EAN code
08716643045873
Product group
LED driver
Brand
Lumiko
Serie
Leddriver Constante Spanning
Type
LB-LD-24V-30WD
Product description
Leddriver constante spanning 24V, 30W, IP67
Product specifications
Suitable for outdoor use
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Housing
Metal housing
Suitable for constant current
No
Suitable for constant voltage
Yes
Output voltage
24 - 24 V
Suitable for DC-voltage (primary side)
Yes
Output power
12 - 30 W
Degree of protection (IP)
IP67
Protection class according to IEC 61140
I
Length
235 mm
Width
30 mm
Height
21 mm
Constant light output (CLO)
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Dimmable
No
Dimming DALI-2
No
Input voltage
176 - 264 V
Frequency input voltage
50 - 60 Hz
Independently operating
Yes
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Short-circuit protected
Yes
Dimming D4i
No
Efficiency
86 %
Mains surge immunity (common mode, L/N-Ground)
6 kV
Mains surge immunity (differential mode, L-N)
4 kV
Emergency power supply system
None
Ambient temperature
-20 - 50 °C
Max. number of luminaires per miniature circuit breaker B16 (MCB)
16
Max. number of luminaires per miniature circuit breaker C16 (MCB)
26
Number of colour channels
1
DIN-rail mounting
No
Operation by Matter
No
