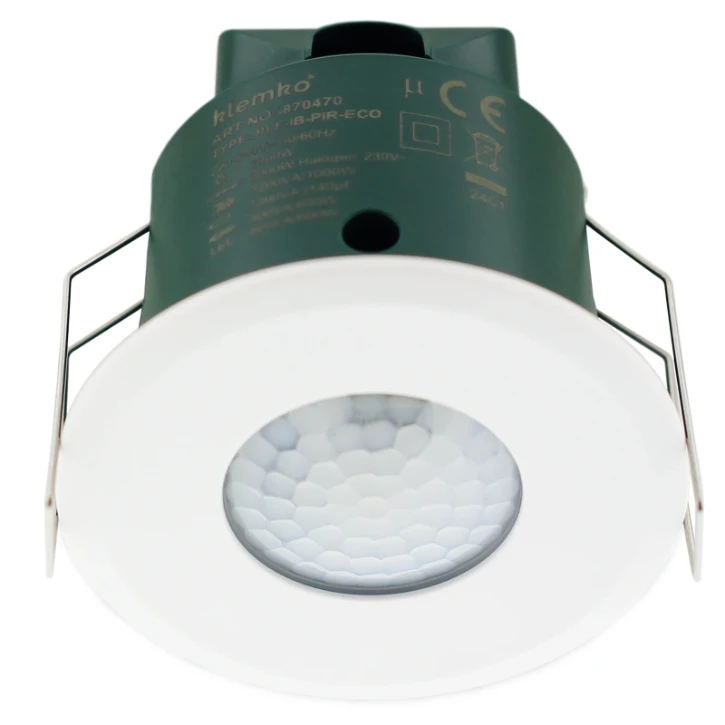

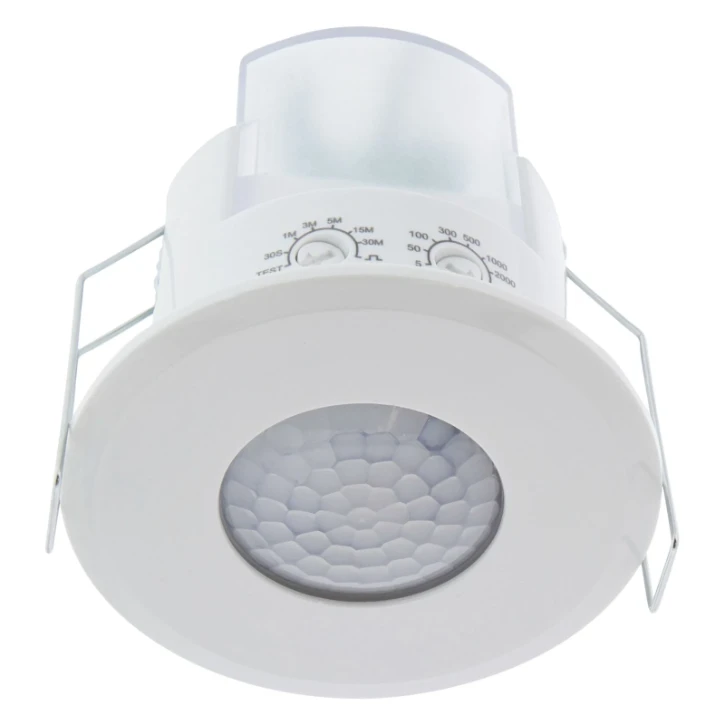

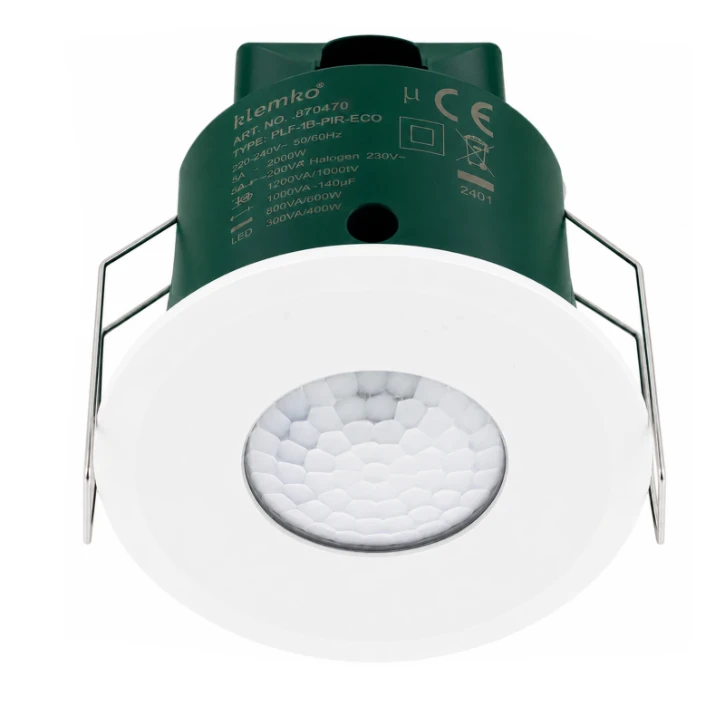

Aanwezigheiddetector plafond PIR, 230V, 2000W, 7M, 40m2, Wit
Add to selection
General information
Ordercode YESSS
3023-1104
Product code
870470
EAN code
08716643063686
Product group
Movement sensor/presence detector complete
Brand
Lumiko
Serie
Sensoren
Type
IB-PIR-ECO-W
Aanwezigheiddetector plafond PIR, 230V, 2000W, 7M, 40m2, Wit
Aanwezigheiddetector plafond PIR, 230V, 2000W, 7M, 40m2, Wit
STOCK
IN STOCK
49
piece
Product description
Aanwezigheiddetector plafond PIR, 230V, 2000W, 7M, 40m2, Wit
Product specifications
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Networkable
No
Scan angle
360 °
Optimum mounting height
2.5 m
Bridging switch
No
Max. reach sideways
3.5 m
Max. presence range
50 m²
Max. reach frontally
2 m

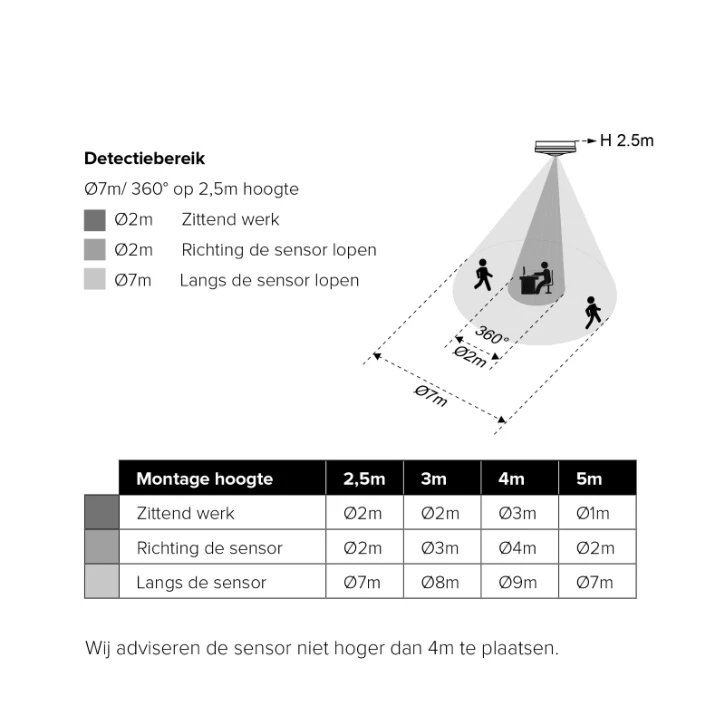

Diameter reach on floor
7 m
Suitable for wireless transmission
No
Remote operation
No
With remote control
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Suitable for ceiling mounting
Yes
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Connection type
Screwed terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
Colour
White
RAL-number (similar)
9016
Transparent
No
Degree of protection (IP)
IP20
Voltage type
AC
Frequency
50 - 60 Hz
Min. switch-on time
30 s
Max. duty cycle
30 min
Detection angle horizontal
5 - 360 °
Response value luminosity
10 - 2000 lx
Max. switching power
2000 W
Number of switching zones
1
Max. starting current
800 A
Substation input
No
With alarm function
No

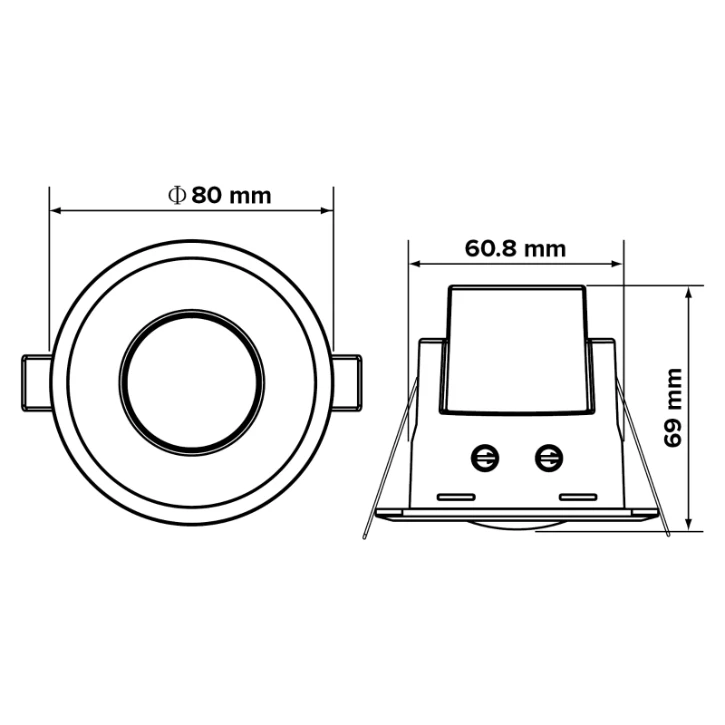

Width
80 mm
Height
5 mm
Diameter
80 mm
Built-in depth
67 mm
Built-in diameter
63 mm
Max. switching power LED
600 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
220 - 240 V
Suitable for wall mounting
No
With acoustic sensor
No
With connection cable
No
Ceiling built-in mounting without installation box
Yes
Compatible with Casambi
No
Movement sensor/presence detector technology
Passive infrared
Ambient temperature
-10 - 40 °C
