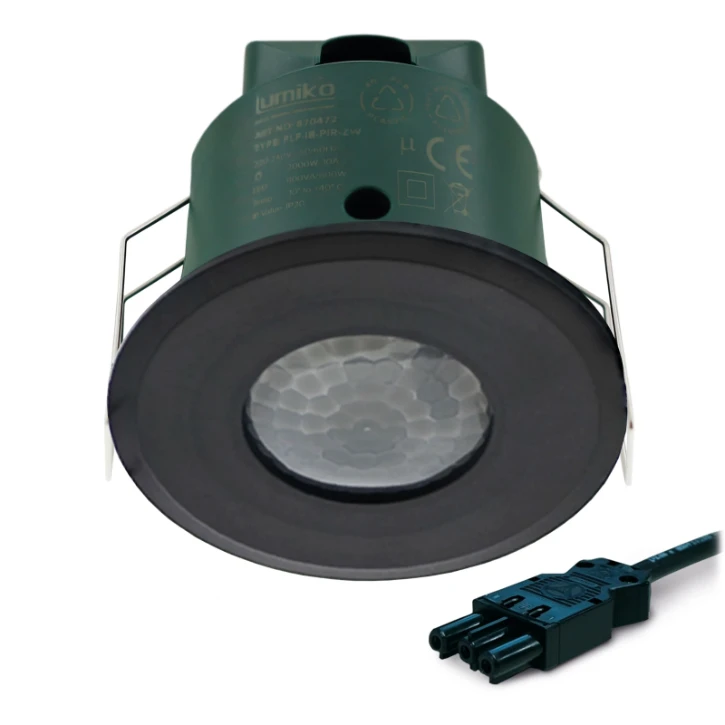

Aanwezigheidssensor plafond PIR, 2000W, 7M, 40m2, Zwart, Wieland
- 3086-8218
- |
- 870933
7
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Aanwezigheidssensor plafond PIR, 2000W, 7M, 40m2, Zwart, Wieland
Aanwezigheidssensor plafond PIR, 2000W, 7M, 40m2, Zwart, Wieland
Ordercode YESSS
3086-8218
Product code
870933
EAN code
08716643073548
Product group
Movement sensor/presence detector complete
Brand
Lumiko
Serie
Sensoren
Type
IB-PIR-ECO-ZW-WIE
Product description
Aanwezigheidssensor plafond PIR, 2000W, 7M, 40m2, Zwart, Wieland
Product specifications
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Networkable
No
Scan angle
360 °
Optimum mounting height
2.5 m
Bridging switch
No
Max. reach sideways
3.5 m
Max. presence range
50 m²
Max. reach frontally
2 m
Diameter reach on floor
7 m
Suitable for wireless transmission
No
Remote operation
No
With remote control
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Suitable for ceiling mounting
Yes
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Connection type
Other
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Anti-bacterial treatment
No
Colour
Black
RAL-number (similar)
9005
Transparent
No
Degree of protection (IP)
IP20
Voltage type
AC
Frequency
50 - 60 Hz
Min. switch-on time
30 s
Max. duty cycle
30 min
Detection angle horizontal
5 - 360 °
Response value luminosity
10 - 2000 lx
Max. switching power
2000 W
Number of switching zones
1
Max. starting current
800 A
Substation input
No
With alarm function
No
Width
80 mm
Height
5 mm
Diameter
80 mm
Built-in depth
67 mm
Built-in diameter
63 mm
Max. switching power LED
600 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
220 - 240 V
Suitable for wall mounting
No
With acoustic sensor
No
With connection cable
Yes
Ceiling built-in mounting without installation box
Yes
Compatible with Casambi
No
Movement sensor/presence detector technology
Passive infrared
