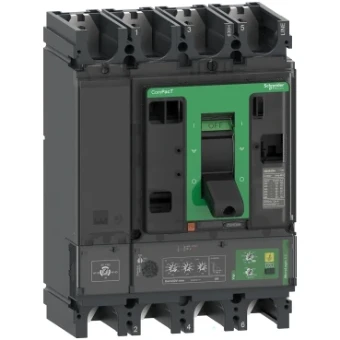

ComPacT - Vermogenschakelaar - NSX400N - 50kA - AC -

Add to selection
General information
Ordercode YESSS
3074-4339
Product code
C40N44V400
EAN code
03606481994134
Product group
Power circuit-breaker for trafo/generator/installation protection
Brand
Schneider Electric
Serie
ComPacT NSX, new generation
Type
Moulded case circuit breaker (MCCB)
ComPacT - Vermogenschakelaar - NSX400N - 50kA - AC - ComPacT - Vermogenschakelaar - NSX400N - 50kA - AC - 4P4D - 400A - 4.3
STOCK
IN STOCK
0 piece
Product description

Deze ComPacT NSX400N is een complete 4P 3d vaste stroomonderbreker, ontworpen om de ruimte en de onderbrekingscapaciteit te optimaliseren. Het is de optimale keuze voor alle standaard- en specifieke toepassingen. De uitschakelcapaciteit (Icu) is 50 kA rms bij 415VAC 50/60Hz. De operationele spanning is 440VAC 50/60Hz. In dit product is een elektronische MicroLogic 4.3 Vigi uitschakeleenheid met een classificatie 400A geïntegreerd, met een geïntegreerde en aanpasbare aardlekbeveiliging. MicroLogic 4.3 Vigi biedt ook instelbare beschermingen voor lange en korte tijd en een vaste onmiddellijke beveiliging. Deze 4-polige versie (185 mm x 255 mm x 110 mm) wordt geleverd met diverse optionele functies en accessoires. Het voldoet aan internationale normen (IEC 60947), CCC, EAC en maritieme specificaties. ComPacT NSX400N maakt deel uit van de EcoStruxure Power-architectuur van Schneider Electric.

Product specifications
Rated permanent current Iu
400 A
Rated voltage
440 - 440 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50 kA
Overload release current setting
160 - 400 A
Adjustment range short-term delayed short-circuit release
240 - 4000 A
Adjustment range undelayed short-circuit release
4800 - 4800 A
Integrated earth fault protection
Yes
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Yes
Number of poles
4
Position of connection for main current circuit
Front side
Type of control element
Wing knob
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP40
With integrated under voltage release
No
more specifications
