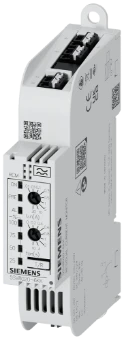

Residual current monitoring device analog, type A 1-channel
Add to selection
General information
Ordercode YESSS
3135-1297
Product code
5SV80206KK
EAN code
04047624581276
Product group
Residual current monitoring relay
Brand
Siemens AG
Type
RCM ANALOG, 1 CHANNEL, TYPE A
Residual current monitoring device analog, type A 1-channel
Residual current monitoring device analog, type A 1-channel
STOCK
IN STOCK
0
piece
Product description
Residual Current Monitor analog Type A 1 Channel Optimized technology for your safety - only from Siemens.
Product specifications
Type of electric connection
Plug-in connection
Function
For AC-current system
Response value amperage 2
10 - 3000 mA
Min. adjustable delay-on energization time
0 s
Max. permitted delay-on energization time
10 s
Indication of difference current
No
Error registration possible
Yes
Number of contacts as change-over contact
1
Width
18 mm
Height
109 mm
Depth
64 mm
