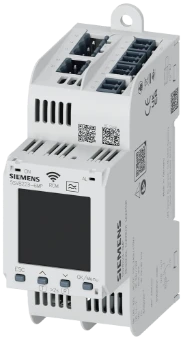

Residual current monitoring device digital, type A 4-channel with comm
Add to selection
General information
Ordercode YESSS
3135-1303
Product code
5SV82236MP
EAN code
04047624581290
Product group
Residual current monitoring relay
Brand
Siemens AG
Type
RCM DIGITAL,4 CHANNEL, TYPE A wi...
Residual current monitoring device digital, type A 4-channel with comm
Residual current monitoring device digital, type A 4-channel with comm
STOCK
IN STOCK
0
piece
Product description
Residual Current Monitor digital Type A 4 Channel with Communication Please consider Radio approval! List of countries: see Certifi cates Optimized technology for your safety - only from Siemens.
Product specifications
Type of electric connection
Screw connection
Function
For AC-current system
Response value amperage 2
6 - 30000 mA
Min. adjustable delay-on energization time
0 s
Max. permitted delay-on energization time
10 s
Indication of difference current
Yes
Error registration possible
Yes
Number of contacts as change-over contact
2
Width
36 mm
Height
109 mm
Depth
72 mm
