General information
Universele op- /inbouw aanwezigheid detector, 2 kanaals, 9m
Universele op- /inbouw aanwezigheid detector, 2 kanaals, 9m
Ordercode YESSS
3059-1011
Product code
870474
EAN code
08716643072930
Product group
Movement sensor/presence detector complete
Brand
Lumiko
Serie
Sensoren
Type
PLF-OPB-PIR-UNI9
Product description
Universele op- /inbouw aanwezigheid detector, 2 kanaals, 9m
Product specifications
Model
Movement sensor
Constant light control
No
HVAC-control
Yes
Animal zone
No
Networkable
No
Scan angle
360 °
Optimum mounting height
2.5 m
Max. reach sideways
4.5 m
Max. presence range
65 m²
Max. reach frontally
2.5 m
Diameter reach on floor
9 m
Suitable for wireless transmission
No
Remote operation
Yes
With remote control
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Suitable for ceiling mounting
Yes
Dim function with dimmer basic element
No
Connection type
Screwed terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP55
Voltage type
AC
Frequency
50 - 60 Hz
Min. switch-on time
30 s
Max. duty cycle
30 min
Detection angle horizontal
5 - 360 °
Response value luminosity
10 - 2000 lx
Max. switching power
2300 W
Number of switching zones
1
Max. starting current
800 A
With alarm function
No

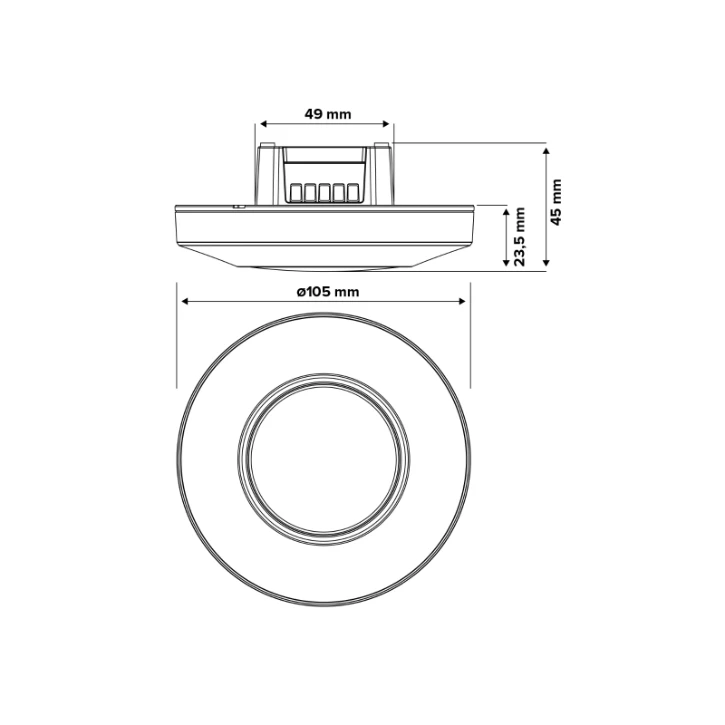

Width
105 mm
Height
48 mm
Diameter
105 mm
Built-in depth
43.5 mm
Built-in diameter
68 mm
Max. switching power LED
600 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
220 - 240 V
Suitable for wall mounting
No
With acoustic sensor
No
With connection cable
No
Ceiling built-in mounting without installation box
Yes
Compatible with Casambi
No
Movement sensor/presence detector technology
Passive infrared
